Product Type : Paper Core Machine
processing type : WINDING MACHINE
Place of Origin : Zhejiang, China
Brand Name : Chuangfeng
voltage : 380V / 3phase / 50HZ (can be customized)
dimension(l*w*h) : 6515*1479*1600mm
warranty : 1 Year
production capacity : 1-30m/min.
machinery test report : Provided
video outgoing-inspection : Provided
core components : PLC, motor
Weight (KG) : 4800
Product name : Four-heads Multi-knives Paper Tube Making Machine
Application : Paper Tube Core Production
Certification : ce


Model | CFJG-30 | ||||||
Paper Layer | 16 Layers | ||||||
Inner Diameter | 20-120mm | ||||||
Wall Thickness | 1-10mm | ||||||
Cutting Length | Thickness 0.5-5mm: 100-1200mm Thickness>5mm: 200-1200mm | ||||||
Winding Nose | Four-heads Double belts | ||||||
Working Speed | 1-30meters/min (relates to size and material quantity) | ||||||
Speed Control | By Inverter | ||||||
Gluing Way | Double Sides | ||||||
Paper Reel Stand & Glue Unit Movement | Automatic Adjusted on Screen | ||||||
Working Air Pressure | 0.6Mpa | ||||||
Operator | 1-2 Persons | ||||||
Power Supply | 380V/3 Phase/50Hz | ||||||
Paper Reel Stand including Paper Lifting Device | 16 Layers Integral Type | ||||||
Weight | 4800kgs | ||||||
Inner Paper Shelf | 1 Set | ||||||
Mandrel Shaft (mold) | 2 Pieces | ||||||
Belt | 4 Pieces | ||||||
Extra blades | 5 Pieces | ||||||
Useful Tool | 1 Set | ||||||
















|
|

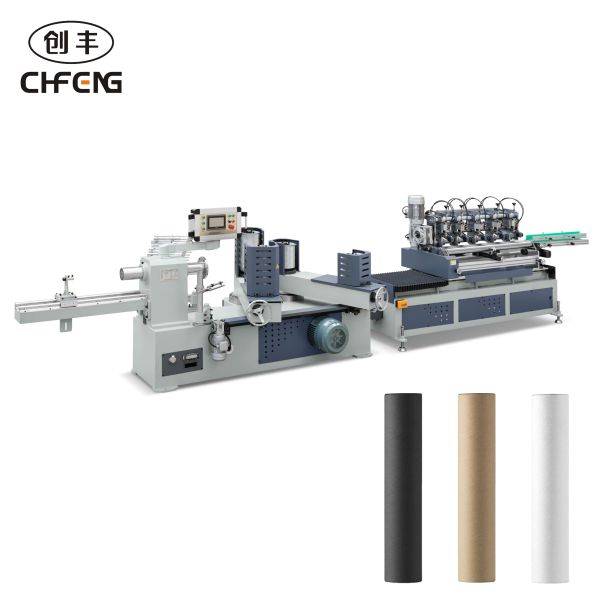

Automatic Kraft Paper Tube Making Machine Paper Core Making Setup Machine Paper Winding Rolling Core Making Machine Images |
