Name: MultiLayer EcoFriendly Paper Tube Winding Machine with PLC Control System for Textile Industry
Brand: Chuangfeng
Price: 1 USD

Product Type : Paper Core Machine

processing type : WINDING MACHINE

Place of Origin : Zhejiang, China

Brand Name : Chuangfeng

voltage : 380V / 3phase / 50HZ (can be customized)

power(w) : 3KW x3

dimension(l*w*h) : 5600*2250*2170mm

warranty : 1 Year

production capacity : 1-30m/min.

machinery test report : Provided

video outgoing-inspection : Provided

core components : PLC, motor

Weight (KG) : 1500

Product name : 2 Heads Small Size Paper Tube Making Machine

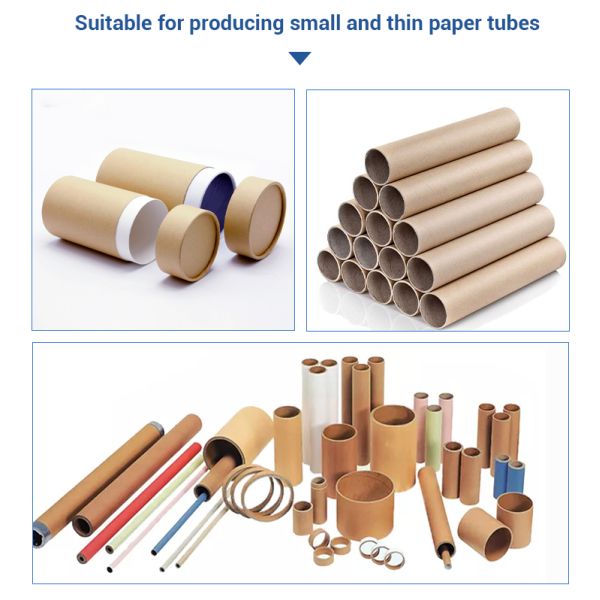

Application : Paper Tube Core Production

Usage : Plastic Wrap Inner Core/Toilet Paper Inner Core/Small Paper Tube

Certification : ce

Contact Now

Production Description

Model	CFJG-50
Paper Layer	3-10 Layers
Inner Diameter	20-150mm
Wall Thickness	1-5mm
Online Cutting Length	1000-5000mm

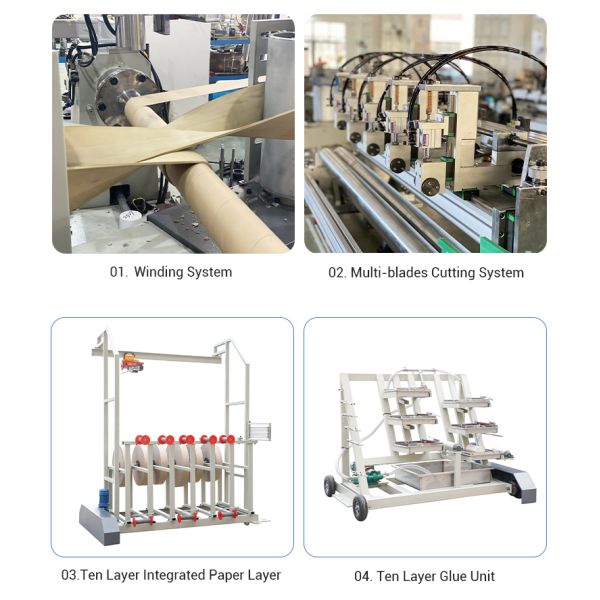

Winding Nose	Two Heads Single Belt
Working Speed	1-20 Meters/min
Speed Regulation	By Inverter
Cutting System	Single High Speed Steel Blade
Gluing Way	Double Sides
Length Fixing	By Infrared
Operator	1-2 Persons
Power Supply	380V/3 Phase/50Hz
Paper Reel Stand	10 Layers
Glue Unit	10 Layers
Inner Paper Stand	1 Set
Tube Unloading Shelf	1 Set
Mandrel Shaft	2 Pieces
Belt	2 Pieces
Extra Blades	5 Pieces
Measurement	270016001800mm
Weight	1500Kgs

Multi-Layer Eco-Friendly Paper Tube Winding Machine with PLC Control System for Textile Industry Images
